ICC/IF for Anti-Neuroligin-3 [IPI-mNLGN3.3] in specificity assay
Addgene #219625
- Data Submitted By
- Alexander Morano , Travis Riedel and Deborah Moshinsky
- Lab Name
- Institute for Protein Innovation (IPI)
- Submission Date
- February 03, 2026
- Publication Date
- February 09, 2026 (modified February 19, 2026)
- DOI
- https://doi.org/10.57733/addgene.yv9ng1
- Abstract
- Experimental results for Anti-Neuroligin-3 [IPI-mNLGN3.3] (Addgene #219625) in an immunofluorescence (IF) specificity assay with ExpiCHO cells expressing human or mouse NLGNs.
- Citation
-
ICC/IF for Anti-Neuroligin-3 [IPI-mNLGN3.3] in specificity assay. Morano A, Riedel T, Moshinsky D 2026. Addgene Report, https://doi.org/10.57733/addgene.yv9ng1

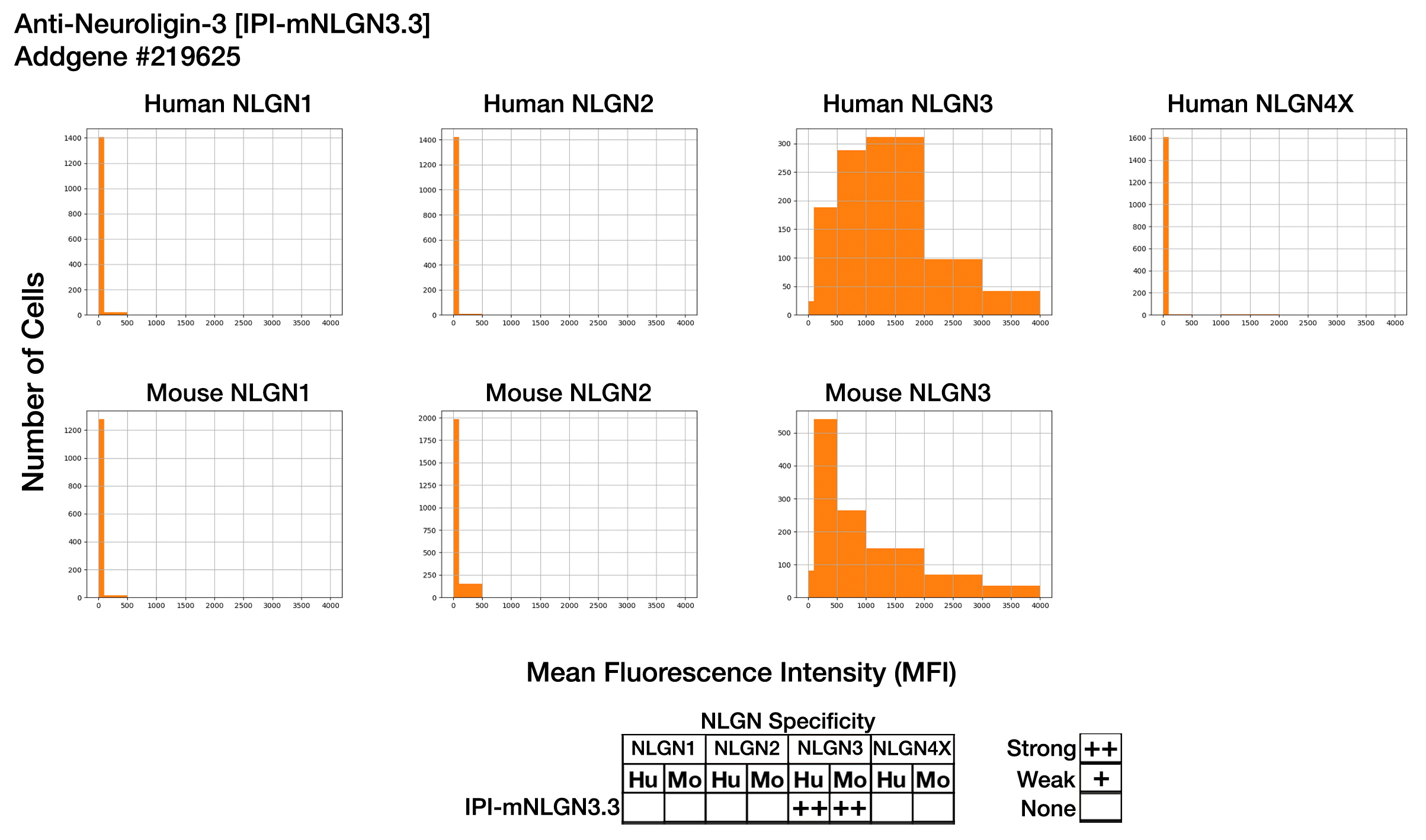

![Each graph depicts the combined quantification of multiple images of the same transfected cells taken at 10X magnification. GFP- or BFP-positive cells were identified and the mean fluorescence intensity (MFI) of the far-red channel for each cell, representing Anti-Neuroligin-3 [IPI-mNLGN3.3] (Addgene #219625) labeling, was recorded. IPI-mNLGN3.3 labeling of human and mouse variants of each related family member is compared on the top and bottom rows. To test family-wide cross-reactivity, IPI-mNLGN3.3 was used at 0.1 µg/mL (1:10,000 dilution).](https://datahub-media.addgene.org/report-images/yv9ng1/mNLGN3.3_IF-SPECIFICITY.png)
Image attribution: Institute for Protein Innovation (IPI)
This report is made available under the Creative Commons Attribution 4.0 International License.
- Antibodies Used
-
Anti-Neuroligin-3 [IPI-mNLGN3.3]
Addgene #219625 -
Alexa Fluor 647 F(ab')2 fragment goat anti-rabbit IgG, Fc fragment-specific
Jackson ImmunoResearch #111-606-046
Materials & Methods
Sample
- Target Species
- Mouse
- Cell / Tissue Type
- ExpiCHO
- Additional Information
- ExpiCHO cells were separately transfected with human or mouse NLGN1, NLGN2, NLGN3, or human NLGN4X. NLGNs were cotransfected with GFP (transfection control).
Buffer
- Name
- PBS
Fixative
- Fixative
- Formaldehyde/Paraformaldehyde
- Time
- 15 min
- Temperature
- Room Temperature
Permeabilization
- Agent
- Triton X-100 in PBS
- Concentration
- 0.20%
- Time
- 10 min
- Temperature
- Room Temperature
Blocking
- Agent
- Normal goat serum + BSA
- Concentration
- 5% serum, 5% BSA
- Time
- 30 min
- Temperature
- Room Temperature
Primary Antibody
- Name
- Anti-Neuroligin-3 [IPI-mNLGN3.3]
- Source
- Addgene
- Catalog Number
- 219625
- Host Species
- Rabbit
- Target Antigen
- NLGN3
- Concentration
- 1 µg/mL (1:1,000 dilution)
- Time
- 60 min
- Temperature
- Room Temperature
Secondary Antibody
- Name
- Alexa Fluor 647 F(ab')2 fragment goat anti-rabbit IgG, Fc fragment-specific
- Source
- Jackson ImmunoResearch
- Catalog Number
- 111-606-046
- Concentration
- 2 µg/mL
- Time
- 60 min
- Temperature
- Room Temperature
Additional Information
- Additional Information
GFP- or BFP-positive cells were identified via the neural network CellPose, then the mean fluorescence intensity (MFI) of the far-red channel for each cell, representing Anti-Neuroligin-3 [IPI-mNLGN3.3] labeling, was recorded. Each histogram displays the number of cells with MFIs ranging from below 100 (background fluorescence) to 4095 (saturation).
Controls
Positive control (not shown): Anti-V5 [IPI-SV5-Pk1] (Addgene #218107) used to confirm IF labeling efficacy (since construct expressing target also has a V5 tag).
Negative control (not shown): Rabbit IgG used to confirm transfected construct does not interact /produce signal with every antibody.
Results
- Result
- Pass (The antibody worked under these conditions)
- Describe Results
- This data shows binding to human and mouse NLGN3 only.
