Flow Cytometry for Anti-Neuroligin-3 [IPI-mNLGN3.3]

Addgene #219625

Data Submitted By
Zachary Anderson , Haiying Li , Travis Riedel , Haisun Zhu and Deborah Moshinsky
Lab Name
Institute for Protein Innovation (IPI)
Submission Date
January 16, 2026
Publication Date
February 09, 2026 (modified February 19, 2026)
DOI
https://doi.org/10.57733/addgene.jnwhsv
Abstract
Experimental results for Anti-Neuroligin-3 [IPI-mNLGN3.3] (Addgene #219625) in a flow cytometry assay with ExpiCHO cells expressing human or mouse NLGN3.
Citation
Flow Cytometry for Anti-Neuroligin-3 [IPI-mNLGN3.3]. Anderson Z, Li H, Riedel T, Zhu H, Moshinsky D 2026. Addgene Report, https://doi.org/10.57733/addgene.jnwhsv

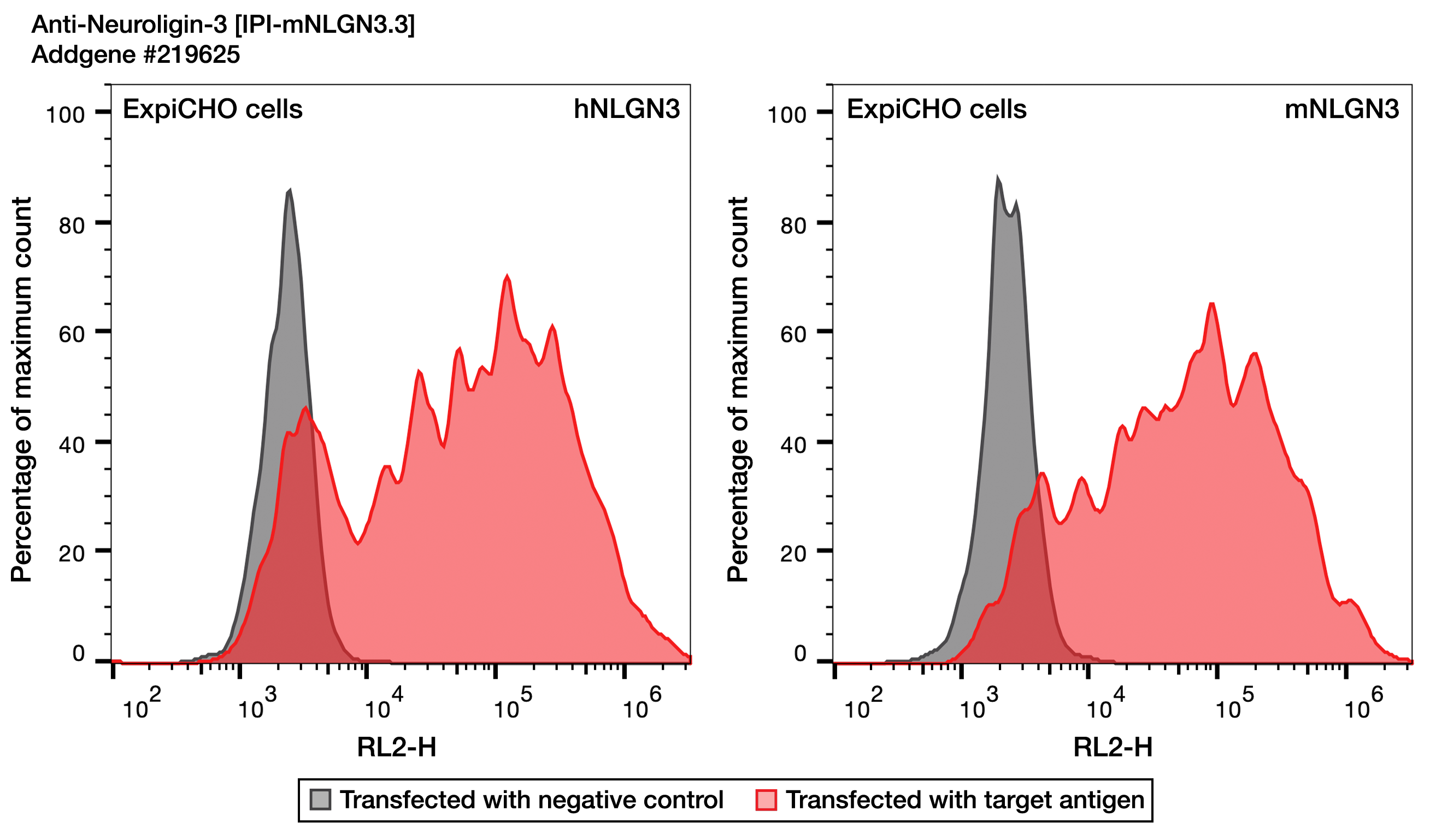

Caption: Anti-Neuroligin-3 [IPI-mNLGN3.3] (Addgene #219625) recognizes human and mouse NLGN3. Histogram from FACS analysis on ExpiCHO cells transfected with human or mouse NLGN3 (red), or B7H3 negative control (gray). Cells expressing human (left panel) or mouse (right panel) NLGN3 were labeled with Anti-Neuroligin-3 [IPI-mNLGN3.3] and Alexa Fluor 647 F(ab’)2 goat anti-rabbit IgG Fc fragment (Jackson ImmunoResearch, 111-606-046). Labeled cells were analyzed with an Intellicyt iQue Screener Plus flow cytometer. Histograms were generated and normalized to mode using FlowJo™ v10.10.
Image attribution: Institute for Protein Innovation (IPI)

This report is made available under the Creative Commons Attribution 4.0 International License.

Antibodies Used
Anti-Neuroligin-3 [IPI-mNLGN3.3]
Addgene #219625
Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG Fc fragment
Jackson ImmunoResearch #111-606-046

Materials & Methods

Sample

Target Species
Mouse
Cell / Tissue Type
ExpiCHO
Additional Information
ExpiCHO cells were transiently transfected with mouse NLGN3 or B7H3 (negative control).

Buffer

Name
PBS

Primary Antibody

Name
Anti-Neuroligin-3 [IPI-mNLGN3.3]
Source
Addgene
Catalog Number
219625
Host Species
Rabbit
Target Antigen
NLGN3
Concentration
15 µg/mL
Time
30 min
Temperature
On ice
View in Addgene Catalog

Secondary Antibody

Name
Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG Fc fragment
Source
Jackson ImmunoResearch
Catalog Number
111-606-046
Concentration
2 µg/mL
Time
30 min
Temperature
On ice

Additional Information

Additional Information

EC50: A fourteen point titration of antibody concentrations, ranging from 660 nM (0.1 mg/mL) to 4.42 pM with a 1:2.5 dilution factor, against human and mouse NLGN3 showed reactivity towards human and mouse NLGN3 with observed EC50 values of 0.19 nM and 0.13 nM for human and mouse NLGN3, respectively.

Protocol: ExpiCHO cells were grown per manufacturer’s instruction. Plasmids expressing mouse or human NLGN3 were transiently transfected into cells together with a plasmid expressing blue fluorescent protein (BFP). Control cells were transfected with plasmid expressing full-length human B7H3 together with the BFP plasmid. Two days after transfection, cells at a density of 3 x 106 cells/mL were labeled with primary antibodies.

  • Primary antibody: 15 µg/mL in 1 mL Dulbecco's phosphate-buffered saline (DPBS), 0.5% BSA, with 0.9 mM Ca2+, 0.5 mM Mg2+, kept at 4 °C. 50 µL of antibody added to cells and incubated on ice for 30 min.
  • Washing conditions: Cells pelleted and washed twice in 0.5% DPBS, 0.5% BSA, with 0.9 mM Ca2+, 0.5 mM Mg2+.
  • Secondary antibody: 2 µg/mL Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG Fc fragment (Jackson ImmunoResearch, 111-606-046) in 0.5% DPBS, 0.5% BSA, with 0.9 mM Ca2+, 0.5 mM Mg2+, 30 min, on ice.
  • Detection: Labeled cells were analyzed with an Intellicyt iQue Screener Plus flow cytometer. Cells were first gated for positive BFP expression and then gated for the Alexa 647-conjugated secondary antibody.
Controls
Control cells were transfected with plasmid expressing full-length human B7H3 together with the BFP plasmid.

Results

Result
Pass (The antibody worked under these conditions)
Describe Results
Recognizes human and mouse NLGN3
