ICC/IF for Anti-DCC [IPI-mDCC.155] in binding assay
Addgene #241891
- Data Submitted By
- Alexander Morano, Travis Riedel and Deborah Moshinsky
- Lab Name
- Institute for Protein Innovation (IPI)
- Submission Date
- November 24, 2025
- Publication Date
- November 26, 2025 (modified December 17, 2025)
- DOI
- https://doi.org/10.57733/addgene.cyxd2q
- Abstract
- Experimental results for Anti-DCC [IPI-mDCC.155] (Addgene #241891) in an immunofluorescence (IF) binding assay with ExpiCHO cells expressing V5-tagged human or mouse DCC.
- Citation
-
ICC/IF for Anti-DCC [IPI-mDCC.155] in binding assay. Riedel T, Moshinsky D, Morano A 2025. Addgene Report, https://doi.org/10.57733/addgene.cyxd2q

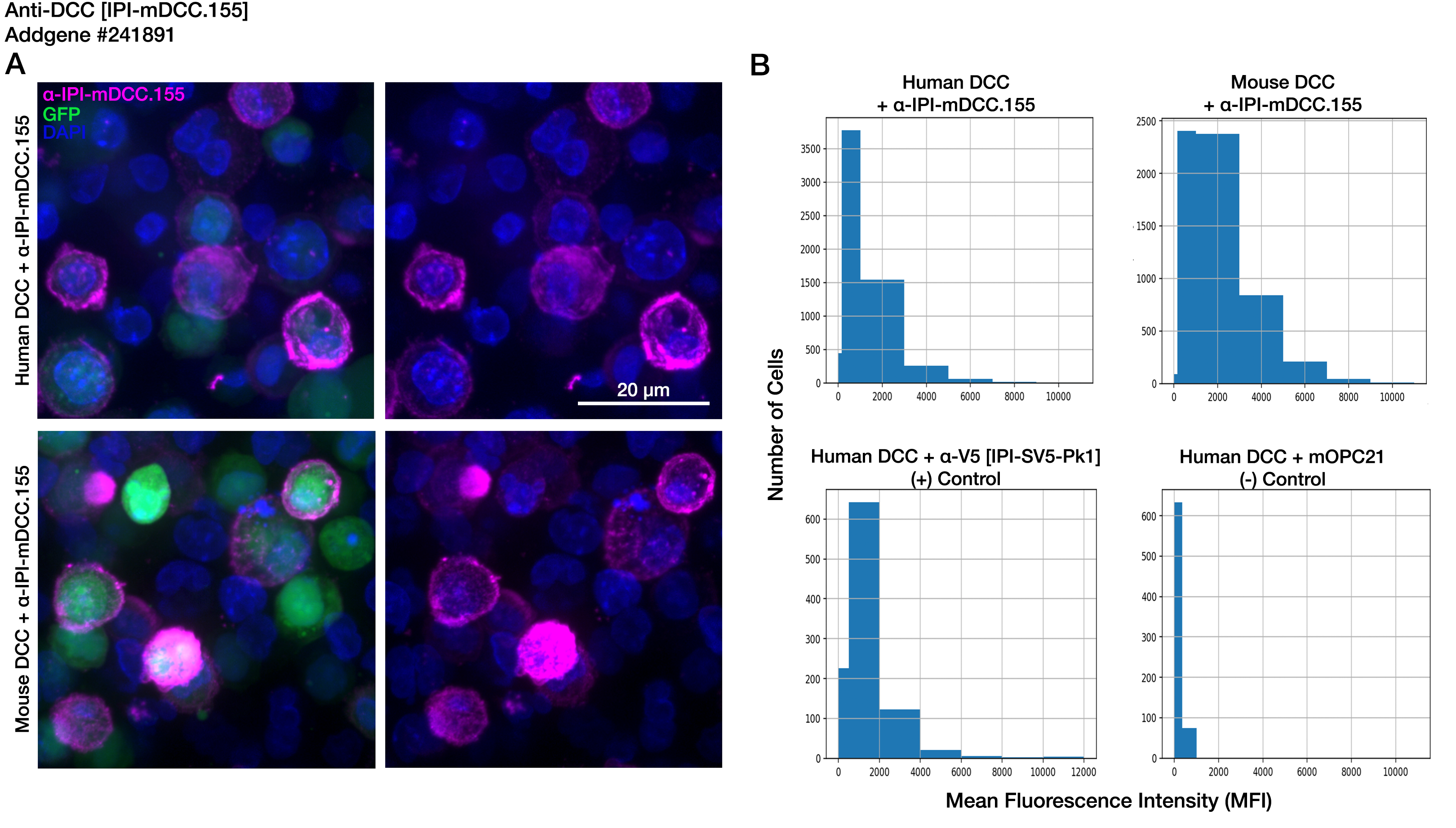

![A) Immunofluorescence (IF) of ExpiCHO cells transfected with human (top) or mouse (bottom) DCC and labeled with Anti-DCC [IPI-mDCC.155] (Addgene #241891). Left images show all three channels (IPI-mDCC.155, GFP (transfection control) and DAPI) while the right images only show IPI-mDCC.155 and DAPI. Images taken at 40X magnification. B) Combined quantification of multiple images of the same transfected cells taken at 10X magnification. IPI-mDCC.155 labeling of human (left) and mouse (right) DCC is shown in the top row, and compared to a positive (left) and negative (right) control in the bottom row. For both panels, IPI-mDCC.155 was used at 1 μg/mL (1:1000 dilution).](https://datahub-media.addgene.org/report-images/cyxd2q/mDCC.155_IF-BINDING.png)
Image attribution: Institute for Protein Innovation (IPI)
This report is made available under the Creative Commons Attribution 4.0 International License.
- Antibodies Used
-
Anti-DCC [IPI-mDCC.155]
Addgene #241891 -
Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG, Fc fragment specific
Jackson ImmunoResearch #111-606-046
Materials & Methods
Sample
- Target Species
- Human
- Cell / Tissue Type
- ExpiCHO
- Additional Information
- ExpiCHO cells were transiently transfected with GFP (transfection control) and human DCC
Buffer
- Name
- PBS
Fixative
- Fixative
- Formaldehyde/Paraformaldehyde
- Time
- 15 min
- Temperature
- Room Temperature
Permeabilization
- Agent
- Triton X-100 in PBS
- Concentration
- 0.2%
- Time
- 10 min
- Temperature
- Room Temperature
Blocking
- Agent
- Normal goat serum + BSA
- Concentration
- 5% serum, 5% BSA
- Time
- 30 min
- Temperature
- Room Temperature
Primary Antibody
- Name
- Anti-DCC [IPI-mDCC.155]
- Source
- Addgene
- Catalog Number
- 241891
- Host Species
- Rabbit
- Target Antigen
- DCC
- Concentration
- 1 µg/mL
- Time
- 60 min
- Temperature
- Room Temperature
Secondary Antibody
- Name
- Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG, Fc fragment specific
- Source
- Jackson ImmunoResearch
- Catalog Number
- 111-606-046
- Concentration
- 2 µg/mL
- Time
- 60 min
- Temperature
- Room Temperature
Additional Information
- Additional Information
Confocal images taken at 40X magnification on an ImageXpress confocal HT.ai microscope.
For quantitative data, GFP-positive cells were identified via the neural network CellPose, then the mean fluorescence intensity (MFI) of the far-red channel for each cell, representing IPI-mDCC.155 labeling, was recorded. Each histogram displays the number of cells with MFIs ranging from below 100 (background fluorescence) to 14000 (saturation).
Controls
Positive control: Anti-V5 [IPI-SV5-Pk1] (Addgene #218107) used to confirm IF labeling efficacy (since construct expressing target also has a V5 tag).
Negative control: Rabbit IgG used to confirm transfected construct does not interact /produce signal with every antibody.
Results
- Result
- Pass (The antibody worked under these conditions)
- Describe Results
- The antibody shows binding to human and mouse DCC.
