Flow Cytometry for Anti-Neuroligin-3 [IPI-mNLGN3.18]
Addgene #219629
- Data Submitted By
- Zachary Anderson , Haiying Li , Travis Riedel , Haisun Zhu and Deborah Moshinsky
- Lab Name
- Institute for Protein Innovation (IPI)
- Submission Date
- October 24, 2025
- Publication Date
- November 10, 2025 (modified November 11, 2025)
- DOI
- https://doi.org/10.57733/addgene.93urkz
- Abstract
- Experimental results for Anti-Neuroligin-3 [IPI-mNLGN3.18] (Addgene #219629) in a flow cytometry assay with ExpiCHO cells expressing mouse or human NLGN3.
- Citation
-
Flow Cytometry for Anti-Neuroligin-3 [IPI-mNLGN3.18]. Anderson Z, Li H, Riedel T, Zhu H, Moshinsky D 2025. Addgene Report, https://doi.org/10.57733/addgene.93urkz
Image attribution: Institute for Protein Innovation (IPI)
This report is made available under the Creative Commons Attribution 4.0 International License.
- Antibodies Used
-
Anti-Neuroligin-3 [IPI-mNLGN3.18]
Addgene #219629 -
Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG Fc fragment
Jackson ImmunoResearch #111-606-046
Materials & Methods
Sample
- Target Species
- Mouse
- Cell / Tissue Type
- ExpiCHO cells
- Additional Information
- ExpiCHO cells were transiently transfected with mouse NLGN3 or B7H3 (negative control).
Buffer
- Name
- PBS
Primary Antibody
- Name
- Anti-Neuroligin-3 [IPI-mNLGN3.18]
- Source
- Addgene
- Catalog Number
- 219629
- Host Species
- Rabbit
- Target Antigen
- NLGN3
- Concentration
- 15 µg/mL
- Time
- 30 min
- Temperature
- On ice
Secondary Antibody
- Name
- Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG Fc fragment
- Source
- Jackson ImmunoResearch
- Catalog Number
- 111-606-046
- Concentration
- 2 µg/mL
- Time
- 30 min
- Temperature
- On ice
Additional Information
- Additional Information
EC50: A fourteen point titration of antibody concentrations, ranging from 660 nM (0.1 mg/mL) to 4.42 pM with a 1:2.5 dilution factor, against mouse and human NLGN3 showed reactivity towards mouse and human NLGN3 with observed EC50 values of 0.31 nM and 0.39 nM for mouse and human NLGN3, respectively.
Protocol: ExpiCHO cells were grown per manufacturer’s instruction. Plasmids expressing mouse or human NLGN3 were transiently transfected into cells together with a plasmid expressing blue fluorescent protein (BFP). Control cells were transfected with plasmid expressing full-length human B7H3 together with the BFP plasmid. Two days after transfection, cells at a density of 3 x 106 cells/mL were labeled with primary antibodies.
- Primary antibody: 15 µg/mL in 1 mL Dulbecco's phosphate-buffered saline (DPBS), 0.5% BSA, with 0.9 mM Ca2+, 0.5 mM Mg2+, kept at 4 °C. 50 µL of antibody added to cells and incubated on ice for 30 min.
- Washing conditions: Cells pelleted and washed twice in 0.5% DPBS, 0.5% BSA, with 0.9 mM Ca2+, 0.5 mM Mg2+.
- Secondary antibody: 2 µg/mL Alexa Fluor 647 F(ab')2 goat anti-rabbit IgG Fc fragment (Jackson ImmunoResearch, 111-606-046) in 0.5% DPBS, 0.5% BSA, with 0.9 mM Ca2+, 0.5 mM Mg2+, 30 min, on ice.

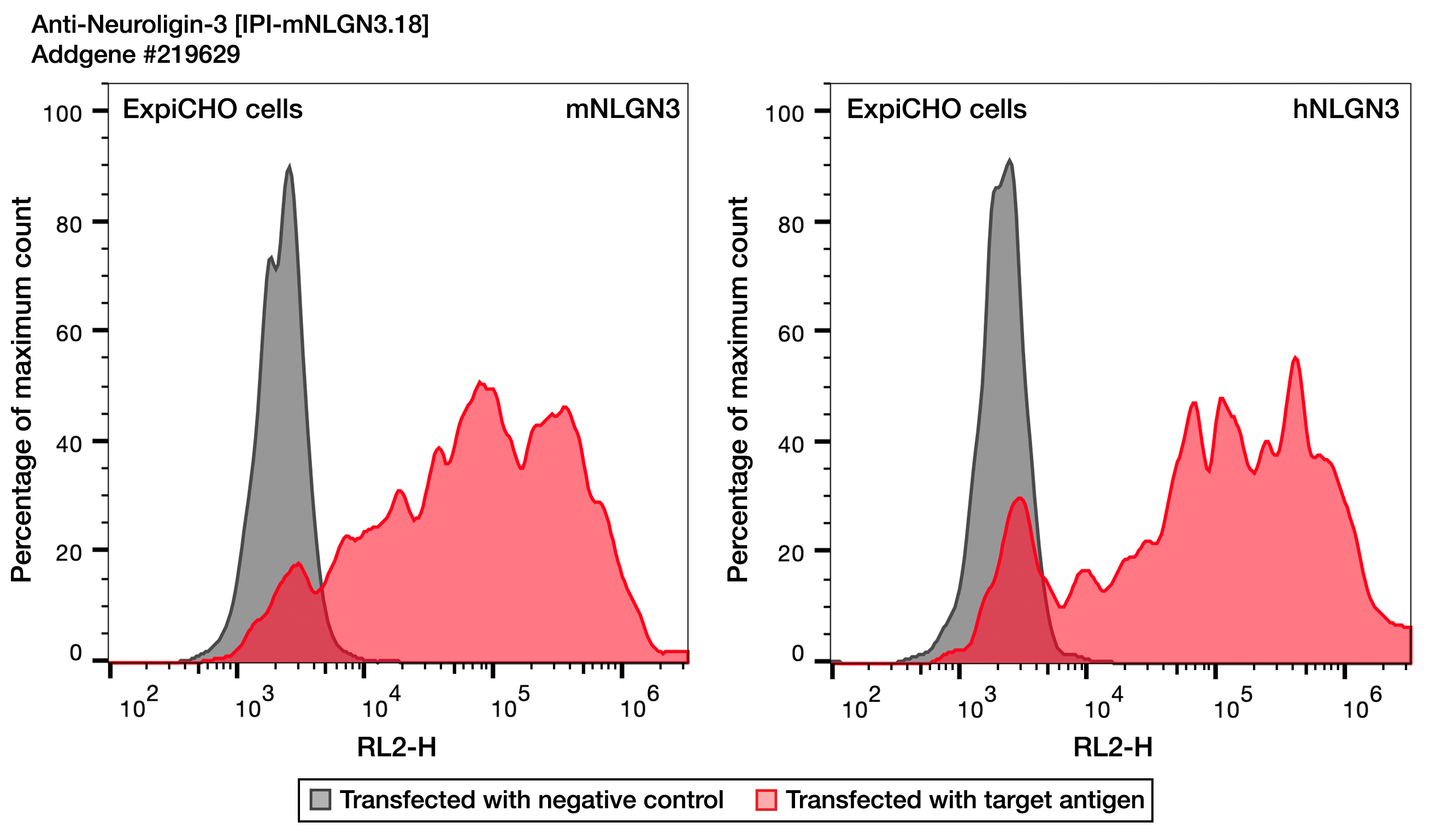

- Detection: Labeled cells were analyzed with an Intellicyt iQue Screener Plus flow cytometer. Cells were first gated for positive BFP expression and then gated for the Alexa 647-conjugated secondary antibody.
- Controls
- Control cells were transfected with plasmid expressing full-length human B7H3 together with the BFP plasmid.
Results
- Result
- Pass (The antibody worked under these conditions)
- Describe Results
- Recognizes mouse and human NLGN3
